Applicable Temperature: | -55~+125℃ | Gender: | Male and female |
---|---|---|---|
Τύπος συνδέσμου: | Υποβρύχιο Δ | Εργασιακή τάση: | 300V |
Rated Current: | 10A / 20A / 30A / 40A | Connector Style: | D-SUB 25W3 |
Contact Material: | Copper Alloy gold plated | Connector with signal contact material: | Phosphor Copper gold plated |
Signal contacts current rating: | 3A | Insulator material: | PBT+30%GF |
Υλικό σφράγισης: | Εποξική ρητίνη | shell material: | PA66 |

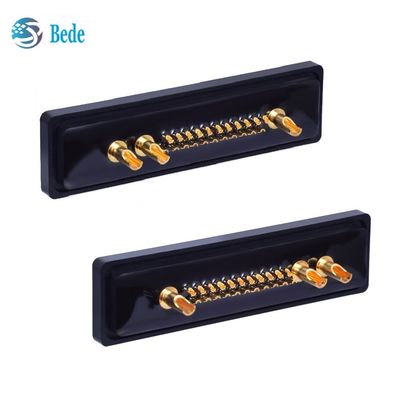

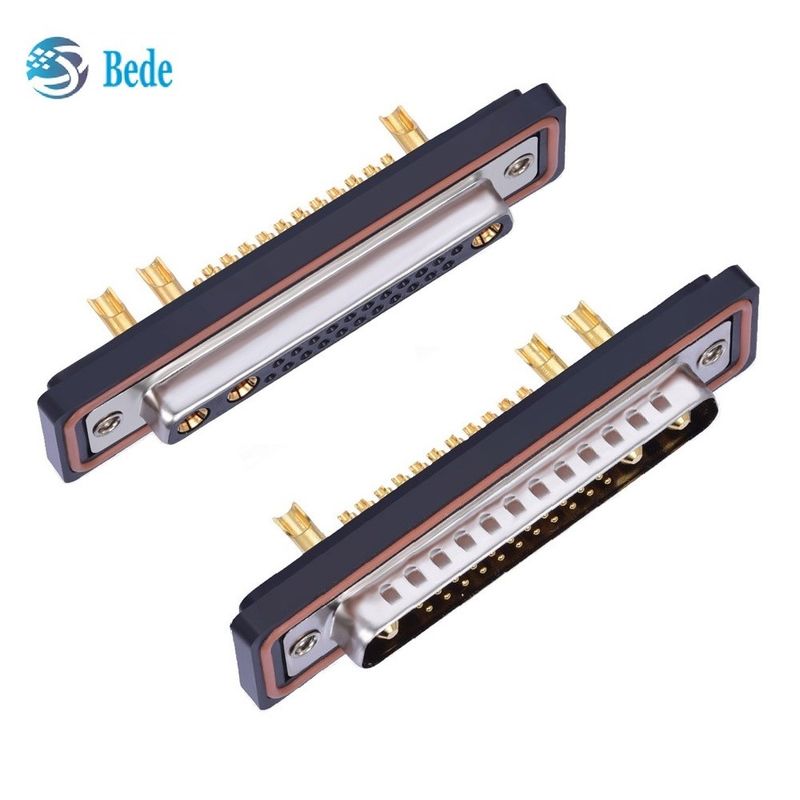

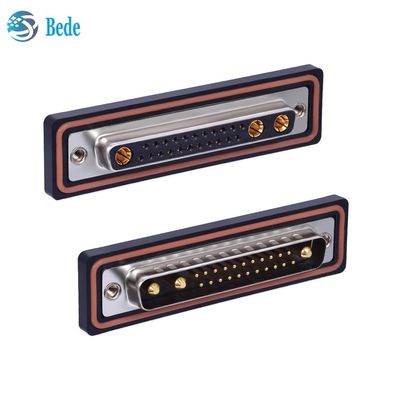

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission
Description
Bede’s 25W3 D-Sub series pioneers hermetic hybrid connectivity with military-grade IP67 sealing, integrating 25 contacts (3 coaxial + 22 power) in a standard D-Sub configuration. Designed for harsh-environment systems demanding uncompromised signal integrity alongside dust/fluid resistance.
Applications:
▣ Outdoor Robotics: Agricultural drone powertrain control in dust/moisture
▣ Marine Electronics: SONAR array pressure-equalized interfaces
▣ EV Charging: DC fast charger outdoor plug-in modules
▣ Oil & Gas: Downhole sensor telemetry junctions
Rated current
Four rated currents are available, refer to the figure below
Part number | A/mm | B/mm | Rated current |
DBA25W3-1 | 2.5 | 4.5 | 10 Amp |
DBA25W3-2 | 3.6 | 5.0 | 20 Amp |
DBA25W3-3 | 4.4 | 5.5 | 30 Amp |
DBA25W3-4 | 5.5 | 5.5 | 40 Amp |
