Applicable Temperature: | -55~+125℃ | Gender: | Male and female |
---|---|---|---|
Connector Type: | D Sub | Working Voltage: | 300V |
Κατηγοριοποιημένο ρεύμα: | 10A / 20A / 30A / 40A | Connector Style: | D-SUB 7W2 |
Υλικό επαφής: | Χρυσός κραμάτων χαλκού που καλύπτεται | Connector with signal contact material: | brass gold plated |
Διορισμός ισχύος των επαφών σήματος: | 3Α | Insulator material: | PBT+30%GF |

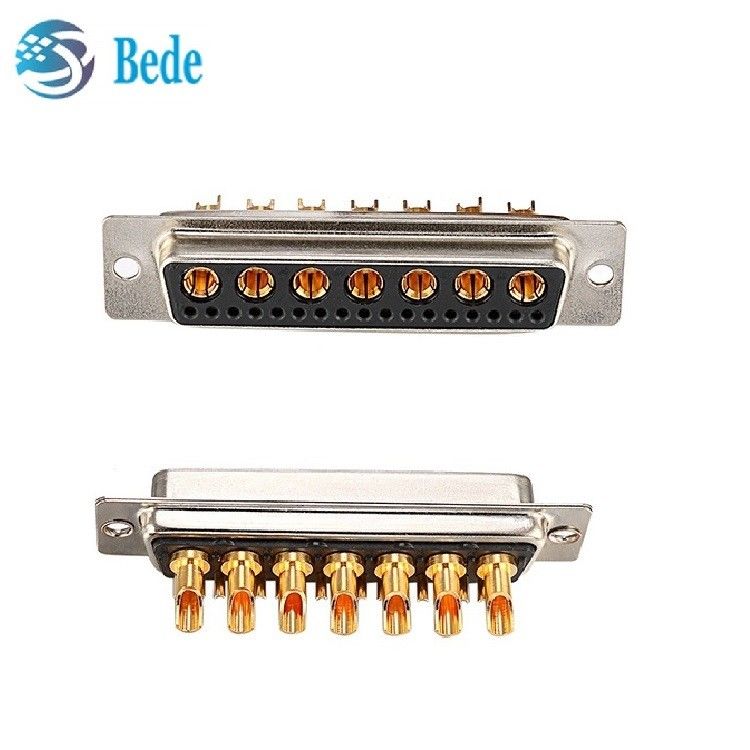

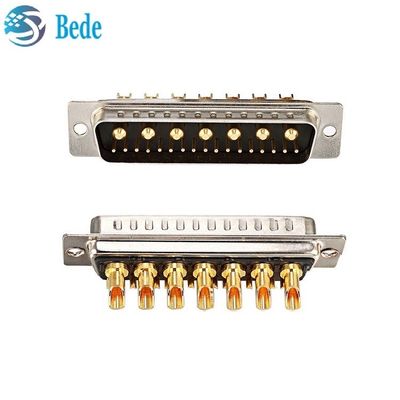

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins
Description
Bede's 24W7 D-Sub connectors redefine space-constrained interconnect solutions through optimized 24-pin hybrid configuration (7 RF coaxial + 17 power contacts). Engineered for mission-critical systems requiring concurrent high-voltage power delivery and precision signal transmission in compact footprints.
Applications:
Technical Specifications
Material and finish
Parts | Materials | finish |
shell | SPCC-SD | nickel or tin plated |
contact pins | Phosphor copper | Gold finish over nickel |
Insulator | PBT + 30% GF | UL94V-O) |
